C-Power breaker

C-Power breaker

Sr No.Description
1Pole Assy. Fix ACBs 400-1250 S1 FIX
2Pole Assy. Fix ACBs 800/1000 C FIX
3Pole Assy. Fix ACBs 1250/1600 C, 1600 S1 FIX
4Pole Assy. Fix ACBs 2000 C FIX
5Pole Assy. Fix ACBs 2500 C FIX
6Pole Assy. Fix ACBs 2000/2500 H FIX
7Pole Assy. Fix ACBs 400-1250 E FIX (For ACBs Before GX Serial No. – July’14)
8Pole Assy. Fix ACBs 1600 E FIX (For ACBs Before GX Serial No. – July’14
9Pole Assy. Fix ACBs 400-1250 E FIX (For ACBs GX Serial No. onwards – July’14)
10Pole Assy. Fix ACBs 1600 E FIX (For ACBs GX Serial No. onwards – July’14)
11Pole Assy. Fix ACBs 2000E Fix

Pole Assy. Draw-out ACBs
Sr No.Description
1Pole Assy. Draw-out ACBs. 400-1250 S1 D/O
2Pole Assy. Draw-out ACBs. 800/1000 C D/O
3Pole Assy. Draw-out ACBs. 800-1600 H D/O
4Pole Assy. Draw-out ACBs. 1250/1600 C & 1600 S1 D/O
5Pole Assy. Draw-out ACBs. 2000 S1 D/O
6Pole Assy. Draw-out ACBs. 2000 C & 2500 S1 D/O
7Pole Assy. Draw-out ACBs. 2500 C
8Pole Assy. Draw-out ACBs. 2000/2500 H D/O
9Pole Assy. Draw-out ACBs. 3200 S1 D/O
10Pole Assy. Draw-out ACBs. 3200/4000 /H1/H D/O
11Pole Assy. Draw-out ACBs. 3200/4000 HO/ H2 D/O
12Pole Assy. Draw-out ACBs. 5000/6300 C D/O
13Pole Assy. Draw-out ACBs. 3200 D
14Pole Assy. Draw-out ACBs. 4000 C
Pole Connector
Sr No.Description
1Pole connector 400-3200S1, 800-2500C, 800-2500H
2Pole connector 3200 H2/H1, 4000 H2/H
3Pole connector 3200D, 4000C, 5000/6300C

CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i
Sr No.Description
1CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 400 S1
2CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 630 S1
3CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 800 C/H/S1
4CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 1000 C/H/S1
5CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 1250 C/H/S1
6CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 1600 C/H/S1
7CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 2000 C/H
8CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 2000 S1
9CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 2500 C/H/S1
10CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 3200 D
11CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 3200 S1
12CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 3200 H2/H1
13CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 4000 C
14CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 4000 H2/H1
15CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 5000 C
16CTs for SR18/SR18G/SR18G with display/SR18Gi with display/SR21i 6300 C

Sr No.Description
1CTs for DN1 release  400S1
2CTs for DN1 release 630 S1
3CTs for DN1 release  630 S1 (Fix)
4CTs for DN1 release 800 C/H/S1 (400/500 Tap)
5CTs for DN1 release 800 E/C/S1 (640/800 Tap)
6CTs for DN1 release 800/1000 H & 1000 C/S1 (800/1000 Tap)
7CTs for DN1 release 1250 C/H/S1
8CTs for DN1 release 1600 C/H/S1
9CTs for DN1 release 2000 C/H (1000/1250 Tap)
10CTs for DN1 release 2000 S1
11CTs for DN1 release 2000 C/H (1600/2000 Tap)
12CTs for DN1 release 2500 C/H/S1 (1600/2000 Tap)
13CTs for DN1 release 3200 D (2000/2500/3200 Tap)
14CTs for DN1 release 3200 S1
15CTs for DN1 release 3200 HO/H2/H1
16CTs for DN1 release 4000 HO/H2/H
17CTs for DN1 release 4000 C

Sr No.Description
1Jaw contact Assy 400-1250A S1
2Jaw contact Assy. 800 C, 1000C
3Jaw contact Assy. 800/1000 H, 1250 C/H & 1600 S1/C/H
4Jaw contact Assy. 2000 S1
5Jaw contact Assy. 2000 C & 2500 S1
6Jaw contact Assy. 2000 H, 2500 C/H & 3200 S1/C
7Jaw contact Assy. 3200 H0/H1/H2, 400O H0/H/H2
8Jaw contact Assy. 3200 D
9Jaw contact Assy. 4000 C
10Jaw contact Assy. 5000/6300 C

Sr No.Description
1Vertical Terminal Adapter 800/1000 C & 400-1250 S1
2Vertical Terminal Adapter 800-1600 H, 1250/1600 C & 1600/2000 S1
3Vertical Terminal Adapter 2000 C
4Vertical Terminal Adapter 2000 H, 2500 C/H
5Vertical Terminal Adapter 2500 S1
6Vertical Terminal Adapter 3200 S1
7Vertical Terminal Adapter 3200 H1/H2, 400O H/H2

Sr No.Description
1Arc Chute 630-1250 S1
2Arc Chute 800-1600 C/H, 1600/2000S1
3Arc Chute 2000 C/H, 2500 C/H/S1
4Arc Chute 3200 C/S1
5Arc Chute 3200/4000 H/H2/H1
6Arc Chute 5000/6300 C
7Arc Chute 3200 D / 4000 C

Sr No.Description
1Arc Chute 690V 800-1600 C/H
2Arc Chute 690V 2000/2500 C/H
3Arc Chute 690V 3200/4000 H/H2/H1
4Arc Chute 690V 3200 D & 4000 C
5Arc Chute Fixing Kit

Sr No.Description
1Safety Shutter Assy. 800-1600 C/H, 400-2000 S1, 3200/4000 H/H2/H1
2Safety Shutter Assy. 2000-3200 C/H, 2500/3200 S1
3Safety Shutter Assy. 3000 D & 4000 C
4Safety Shutter Assy. 5000/6300 C

Sr No.Description
1Fixed Arcing Contact 630-1250 S1
2Fixed Arcing Contact 800-1600 C, 1600 S1
3Fixed Arcing Contact 800-1600 H, 2000 S1
4Fixed Arcing Contact 3200/4000 H/H2/H1
5Fixed Arcing Contact 2000 C/2500 S1
6Fixed Arcing Contact 2500 C / 3200 S1
7Fixed Arcing Contact 3200 D, 4000C
8Fixed Arcing Contact 5000-6300C

Sr No.Description
1Moving Arcing Contact 630-1250 S1
2Moving Arcing Contact 800-1600 C, 1600 S1, 2000S1
3Moving Arcing Contact 800-1600 H
4Moving Arcing Contact 3200/4000 H/H0/H1
5Moving Arcing Contact 3200/4000 H2
6Moving Arcing Contact 2000 C
7Moving Arcing Contact 2500 S1
8Moving Arcing Contact 2500 C
9Moving Arcing Contact 3200 S1
10Moving Arcing Contact 3200 D, 4000C
11Moving Arcing Contact 5000-6300C

Sr No.Description
1Cradle Terminal Assy. 800/1000 C & 400-1250 S1
2Cradle Terminal Assy. 800-1600 H & 1250/1600 C & 1600/2000 S1
3Cradle Terminal Assy. 2000 C
4Cradle Terminal Assy. 2000 H & 2500 C/H
5Cradle Terminal Assy. 3200 D
6Cradle Terminal Assy. 2500 S1
7Cradle Terminal Assy. 3200 S1
8Cradle Terminal Assy. 4000 C
9Cradle Terminal Assy. 3200/4000 H/H2/H1
10Cradle Terminal Assy. 5000/6300 C

Sr No.Description
1Cradle Terminal support 800/1000 C & 400-1250 S1
2Cradle Terminal support 800-1600A H, 1250/1600A C, 1600/2000A S1
3Cradle Terminal Support 3200/4000A H/H0/H1/H2
4Cradle Terminal support 2000A C
5Cradle Terminal support 2500/3200 S1, 2000 H & 2500 C/H
6Cradle Terminal support 3200A D & 4000A C
7Cradle Terminal support 5000/6300A C

Sr No.Description
1Front Mounted Mechanical operation counter (Non-resettable)
2Front Mounting kit for Front mounted counter assembly

Sr No.Description
1Shunt Release EA 24V DC
2Shunt Release EA 110V DC
3Shunt Release EA 220V DC
4Shunt Release EA1 110V
5Shunt Release EA1 240V AC
6Shunt Release EA1 415V AC

Sr No.Description
1Under-voltage Release 24V DC
2Under-voltage Release 240V AC
3Under-voltage Release 415V AC

Sr No.Description
1Closing Coil 24V DC
2Closing Coil 30V DC
3Closing Coil 48V DC
4Closing Coil 110V AC/DC
5Closing Coil 240V AC/ 220V DC

Sr No.Description
1Closing coil DC adaptation kit – 24V DC
2Closing Coil DC adaptation Kit 30V DC
3Closing Coil DC adaptation Kit 48V DC
4Closing Coil DC adaptation Kit 110V DC
5Closing Coil DC adaptation Kit 220V DC
Sr No.Description
1Resistor-Kit 24VDC
2Resistor-Kit 30VDC
3Resistor-Kit 110VDC
4Resistor-Kit 220VDC

Sr No.Description
1Closing Preventor 240V AC
2Closing Preventer 415V AC

Sr No.Description
1Earth fault release for DN1 Type EF1 (10%, 20% In )
2Earth fault release for DN1 Type EF2 (30%, 40%, 50% In)

Sr No.Description
1Big Tube 3-Pole 800-1600 C/H & 400-2000 S1
2Big Tube 3-Pole 2000/2500 C/H & 2500/3200 S1
3Big Tube 3-Pole 3200/4000 H/H2/H1
4Big Tube 3-Pole 3200 D, 4000 C
5Big Tube 3-Pole 5000/6300 C

Sr No.Description
1Small Tube 3-Pole 800-1600 C/H & 400-2000 S1
2Small Tube 3-Pole 2000/2500 C/H & 2500/3200 S1
3Small Tube 3-Pole 3200/4000 H/H2/H1

Sr No.Description
1Hylum Tube Pillar (CT TUBES) 800-1600 C/H & 400-2000 S1
2Hylum Tube Pillar (CT TUBES) 2000/2500 C/H & 2500/3200 S1
3Hylum Tube Pillar (CT TUBES) 3200/4000 H/H2/H1

Sr No.Description
1FRCD 400-3200S1 (3P & 4P), 800-3200C (3P & 4P), 800-2500H (3P & 4P), 3200H1/H2 (3P), 4000H/H2 (3P)
2FRCD 3200H1/H2 (4P), 4000H/H2 (4P)
3FRCD 3200D/4000C/5000C/6300C (3P/4P)

Sr No.Description
1MDO to EDO 400-3200 S1, 800-2500C/H (3P &4P), 3200 H1/H2, 4000 H/H2 (3P)
2MDO to EDO 3200 H1/H2 , 4000 H/H2 (4P)
3MDO to EDO 3200D, 4000/5000/6300 C (3P & 4P)
4Twisted Link Kit – MF/MDO
5FRCD Roller Kit

Sr No.Description
1MAIN SPRING 800-1600 C (3P),1600 S1 (3P) (Green)
2MAIN SPRING 400-1250 S1 (3P) (Black)
3MAIN SPRING 800-1600 C (4P), 2000-2500 C (3P), 800-1600H, 2000-3200 S1 (3P), 630-1600 S1 (4P) (Blue)
4MAIN SPRING 2000/2500 H (4P), 3200 D& 4000 C (3P) (Yellow)
5MAIN SPRING 5000/6300 C (3P), 3200 D& 4000 C (4P) (Grey)
6MAIN SPRING 2000/2500 H (3P), 2000-3200 C (4P), 2000-3200 S1 (4P), 800-1600 H (4P) (White)
7MAIN SPRING 3200HO/H1/H2 (3P), 4000HO/H/H2 (3P) (Violet)
8MAIN SPRING 3200HO/H1/H2 (4P), 4000HO/H/H2 (4P) (Light Green)
9MAIN SPRING 5000/6300 C (4P) (Orange)

Sr No.Description
1Motor 240V AC
2Motor 110V DC
3Motor 220V DC
4Motor 110V AC
5Motor Limit Switch
6Hardware it for Motor

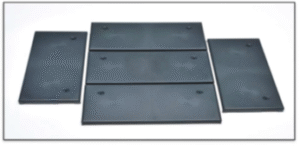

Sr No.Description
1Front Facia Top Cover 800-1600 C/H & 400-2000 S1 (3P)
2Front Facia Top Cover 800-1600 C/H & 400-2000 S1 (4P)
3Front Facia Top Cover 2000/2500 C/H & 2500/3200 S1 (3P)
4Front Facia Top Cover 2000/2500 C/H, 2500/3200 S1 (4P) & 3200/4000 H/H2/H1 (3P)
5Front Facia Top Cover 3200 D, 4000 C (3P)
6Front Facia Top Cover 3200 D, 4000 C (4P) & 5000/6300C (3P) & 3200HO/H1/H2, 4000HO/H/H2 (4P)
7Front Facia Top Cover 5000/6300 C (4P)

Sr No.Description
1Front Facia Side Cover 800-1600 C/H & 630-2000 S1 (4P)
2Front Facia Side Cover 2000/2500 C/H & 2500/3200 S1 (3P)
3Front Facia Side Cover 2000/2500 C/H & 2500/3200 S1 (4P)
4Front Facia Side Cover 3200 D, 4000 C (3P)
5Front Facia Side Cover 3200 D, 4000 C (4P) & 5000/6300C (3P) & 3200HO/H1/H2, 4000HO/H/H2 (4P)
6Front Facia Side Cover 5000/6300 C (4P)
7Front Facia Fixing Kit
8Front Facia – for Manual ACB
9Front Facia- for Electrical ACB
10Cradle Facia

Sr No.Description
1Lockable Trip-push Button Type-AA
2Lockable Trip-push Button Type-BB
3Lockable Trip-push Button Type-CC
4Lockable Trip-push Button Type-DD
5Locking-in Isolated Position (LIP) Type-A
6Locking-in Isolated Position (LIP) Type-B
7Locking-in Isolated Position (LIP) Type-C
8Locking-in Isolated Position (LIP) Type-D
9Locking-in Any Position (LAP) Type-A
10Locking-in Any Position (LAP) Type-B
11Locking-in Any Position (LAP) Type-C
12Locking-in Any Position (LAP) Type-D
13Racking-interlock Type- AA
14Racking-interlock Type-BB
15Racking-interlock Type-CC
16Racking-interlock Type-DD
17Door Interlock
18LTPB 3 I/C + 2 B/C (5 Locks, 3 keys)
19LTPB 5 I/C + 4 B/C (9 Locks, 5 keys)
20LTPB 4 I/C + 3 B/C (7 Locks, 4 keys)
21LTPB 3 I/C + 2 B/C (Type-L)
22LTPB 3 I/C + 2 B/C (TYPE-M)
23LTPB 3 I/C + 2 B/C (TYPE-N)
24LTPB 3 I/C + 2 B/C (TYPE-LM)
25LTPB 3 I/C + 2 B/C (TYPE-MN)
26Lockable Trip Push Button kit (A to Z)
27Lockable Trip Push Button kit (A to P)
28Racking Padlock Assembly for C-Power
29LTPB 3 I/C + 2 B/C
30LTPB 5 I/C + 4 B/C
31LTPB 4 I/C + 3 B/C

Sr No.Description
1Spring Kit
2Roller Assy.
3Hardware Kit
4CONV. KIT AUTO-MANUAL – C2
5PUSH BUTTON-RED
6PUSH BUTTON-GREEN
7Racking Handle (upto 2500 H/C & 3200 S1)
8Racking handle (3200 HO/H2 & Above)
9Operating Handle
10Control Box (DVB)
11R.O.H. MANUAL 800-2500A (DVB)
12R.O.H. MANUAL 400A (DVB)
13GRIP FOR Opertaing Handle
14Microswitch for voltmetric releases (2) each
15Microswitch for common indication of O/L & S/C (3) each
16Microswitch for separate indication of O/L & S/C (3) each
17Microswitch for Spring Charge Indication
18Service position microswitch – Right (2)
19Service position microswitch – Left (2)
20Test or isolated position microswitch – Right (2)
21Test or isolated position microswitch – Left (2)
22Telescopic Rail (L)
23Telescopic Rail (R)
246 WAY SIC BLK.
25Trip-rod Assy. EA / MV
26Trip-latch
27Bezel FIXED BREAKER
28Bezel DRAWOUT BREAKER
29Main shaft assy, 5000/6300 C 4-Pole
302NO+2NC 400-2000 E, 630-3200 S1, 800-2500 C/H & 3200/4000 H/H0/H1
312NO+2NC 3200D, 4000-6300 C
326NO+6NC 630-3200 S1, 800-2500 C/H & 3200/4000 H/H0/H1
336NO+6NC 3200D, 4000-6300 C
34ACB Handling Trolley – common for OMEGA and C-Power ACBs
35Hylam Partition for C3 ACBs (3200D, 4000-6300C)
36Hylam Partition for C2 ACBs (400-3200S1, 800-2500C/H)
37Hylam Partition for C2 ACBs 3200-4000HO/H/H1/H2)
38C-Power Maintenance Kit

Sr No.Description
1SR71 Release Spare Kit; C-POWER
2SR71 Connector Spare Kit; C-POWER
3Spare Composite CT, 1600C/H, SR71
4Spare Composite CT, 2500C/H, SR71
5Spare Composite CT SR71, 4000H0/H
6Spare Composite CT,4000C/3200D* ,SR71
7Spare Composite CT, 6300C/H, SR71
8Spare Wire Harness Kit – Fr.1, 3P; SR71
9Spare Wire Harness Kit – Fr.2, 3P; SR71
10Spare Wire Harness Kit – Fr.3, 3P; SR71
11Spare Wire Harness Kit – Fr.4, 3P; SR71
12Spare Wire Harness Kit – Fr.1, 4P; SR71
13Spare Wire Harness Kit – Fr.2, 4P; SR71
14Spare Wire Harness Kit – Fr.3, 4P; SR71
15Spare Wire Harness Kit – Fr.4, 4P; SR71
16Spare Rating Plug (800A); SR71
17Spare Rating Plug (1000A); SR71
18Spare Rating Plug (1250A); SR71
19Spare Rating Plug (2000A); SR71
20Spare Rating Plug (3200A); SR71
21Spare Rating Plug (5000A); SR71
22SR71-REL MODULE;C-POWER
23SR71-COM MODULE; C-POWER
24SR71-COM MODULE; C-POWER
25SR71-PM Module ; C-POWER
26Retrofit Kit SR71 – Fr.1, 3P: C-Power
27Retrofit Kit SR71 – Fr.2, 3P; C-POWER
28Retrofit Kit SR71 – Fr.3, 3P; C-POWER
29Retrofit Kit SR71 – Fr.4, 3P; C-POWER
30Retrofit Kit SR71 – 4000C-3P; C-POWER
31Retrofit Kit SR71 – Fr.1, 4P; C-POWER
32Retrofit Kit SR71 – Fr.2, 4P; C-POWER
33Retrofit Kit SR71 – Fr.3, 4P; C-POWER
34Retrofit Kit SR71 – Fr.4, 4P; C-POWER
35Retrofit Kit SR71 – 4000C-4P; C-POWER

<body> <p>This page uses frames, but your browser doesn't support them.</p> </body>
